Digitalization board NEM 662 Next18 for BB Midi Roco 2, 3 or 4 lights for wired LEDs

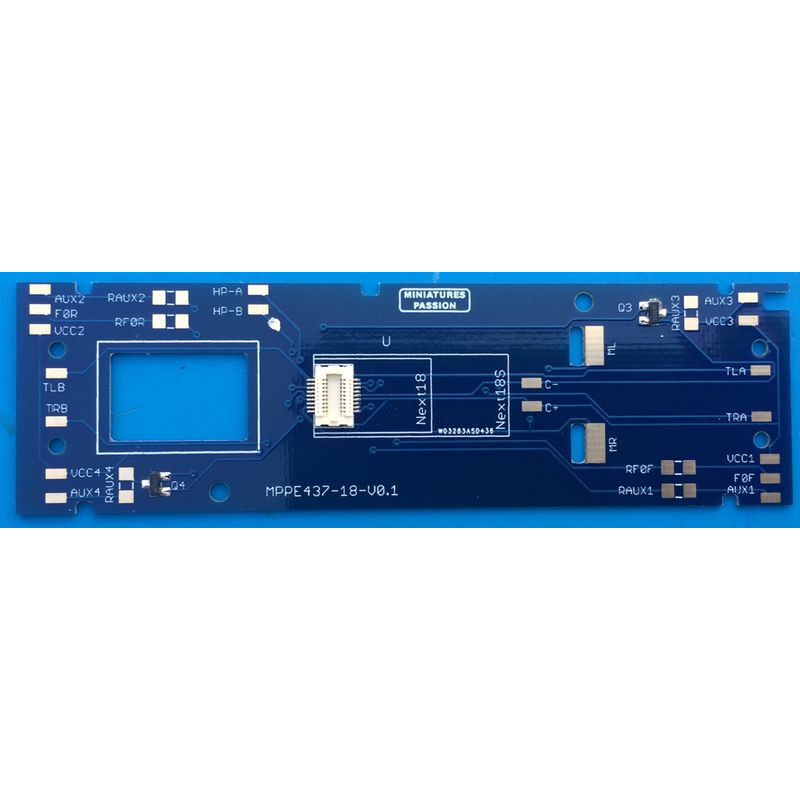

Printed circuit with DCC NEM 662 Next18 socket, to equip the BB Midi Roco 2, 3 or 4 lights (BB300/900/4100/4200/8100).

Also suitable for the 1100 NS series (original or Bost Neus), the 101/29 SNCB series
The printed circuit is equipped with two-color LEDs which replace the bulbs and allow you to have white and red lighting.

Sizes 99 x 29 mm.
This board equipped with a Next18 decoder provides 6 functions (F0F, F0R, AUX1, AUX2, AUX3, AUX4).
You can control the lights independently with 4 functions (F0F, F0R, AUX1, AUX2).
You have 2 functions left for cabin lighting

To better understand the NEM662 aka Next18 standard, we invite you to download the PDF available in the attached files.

Complete instructions illustrated with numerous color photos.

Please note when using an MPPE board, you must program the decoder to have access to the light control functions independently. As this task is quite tedious with most control centers, we offer decoders, sound or not, pre-programmed, ready to use.

This range of products received the Model of the Year 2017 New Technologies diploma from the FFMF
