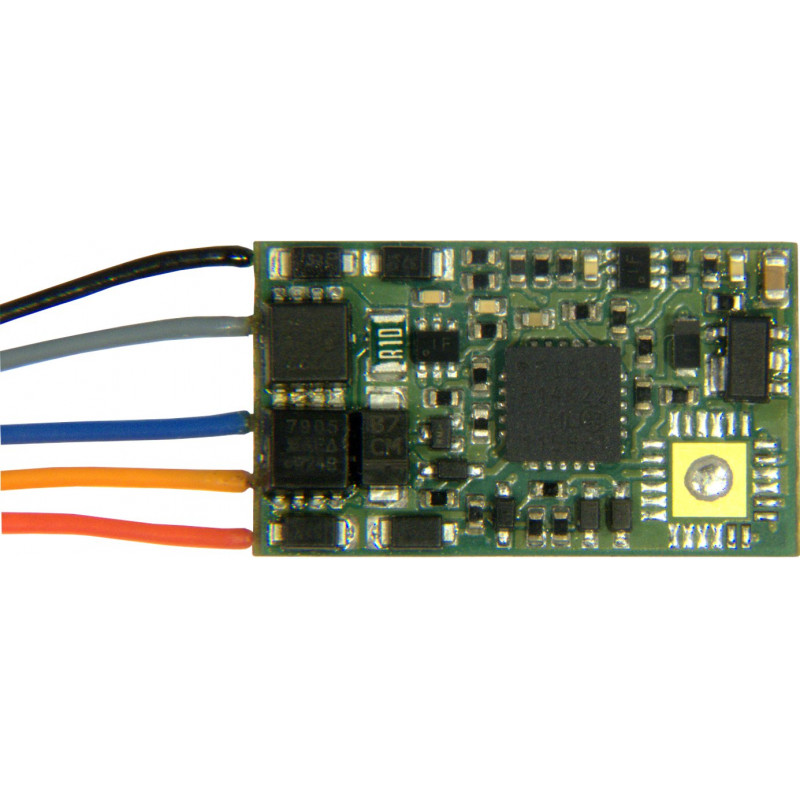

Single 0.8A turnout decoder

Decoder to control 1 single turnout.

Maximum current 0.8A (peak at 2.5A)

Overconsumption protection: the decoder automatically switches to a fault if the temperature reaches 100°C and an LED starts flashing. The decoder resumes operation as soon as the temperature drops to 20°C.

1 output to which can be connected:

• double coil motor
• motor
• EPL motor
• two bulbs

The motor and the EPL are connected to 2 poles, the others to 3 poles - with a positive pole.

No output for backlighting
