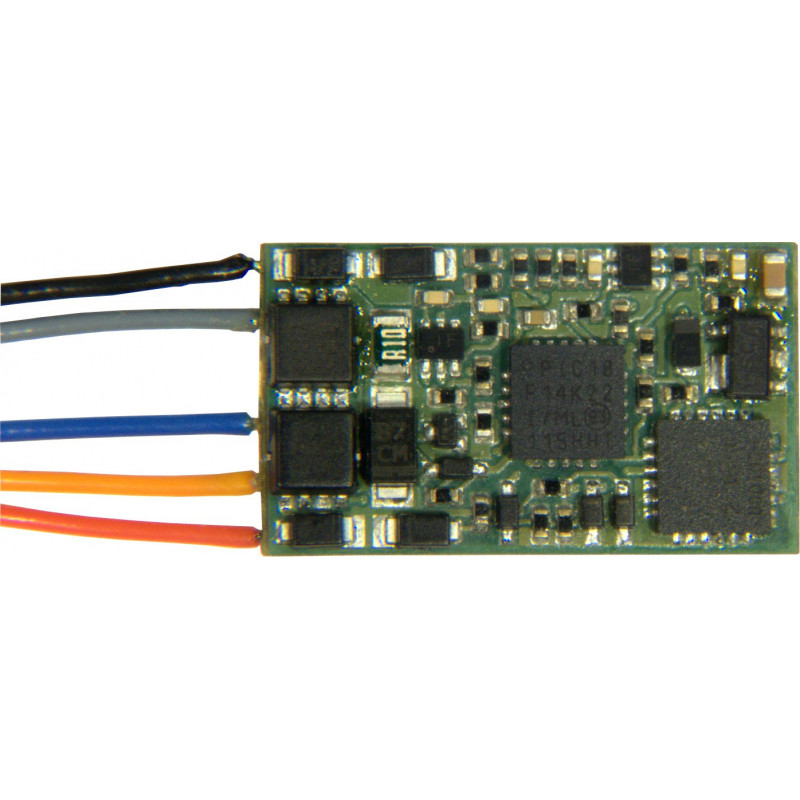

0.8A single turnout decoder with 8 outputs

Decoder to control 1 single turnout.

Maximum current 0.8A (peak at 2.5A)

Overconsumption protection: the decoder automatically fails if the temperature reaches 100°C, and an LED starts flashing. The decoder resumes operation as soon as the temperature drops to 20°C.

1 output to which can be connected

• 2 double-coil motors
• 2 motors
• 2 EPL motors
• two bulbs

The motor and the EPL are connected to 2 poles, the others to 3 poles - with a positive pole.

2 inputs used for turnout position feedback or for switch control. 2 inputs for forced or canton switching

8 outputs (100mA) on solder pads for signals (4 x 2 LEDs or 2 x 4 LEDs)
