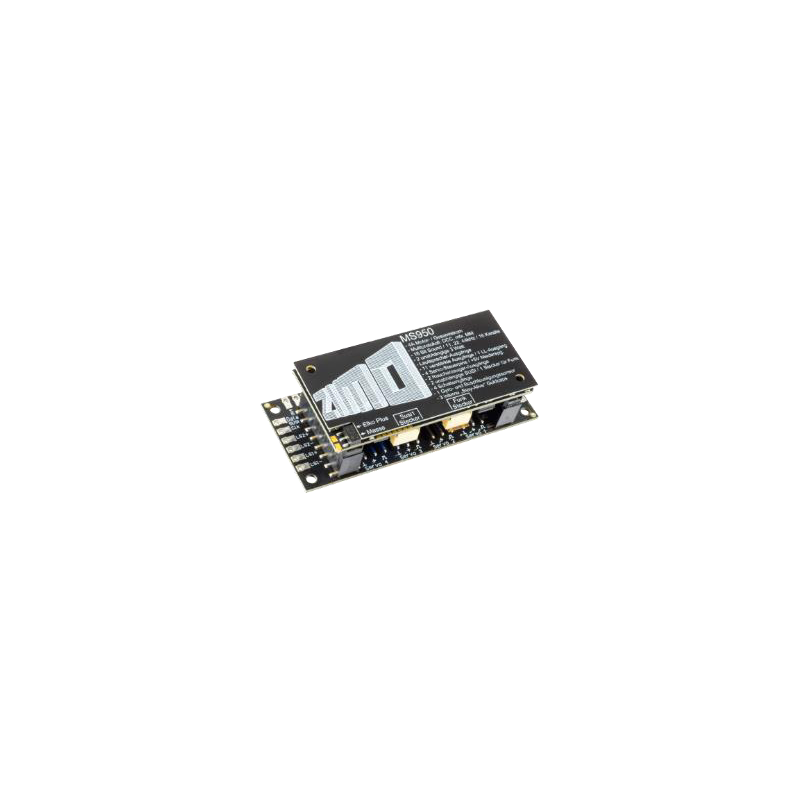

11-function sound traction decoder with 34-pin interface + board equipped with solder pads

MS950P

with 34-pin interface for large scales (O, LGB, 1, G, etc.)

€165.00
Tax included
Quantity
Out of stock





Expédition





Retours et retractation

Description

Sound traction decoder with 34-pin interface on 2 pin headers, supplied without speaker

34 connections:

  • 2 track connections
  • 2 motor connections
  • 11 function outputs
  • 4 non-amplified function outputs
  • 2 servo motor controls
  • 2 fan outputs
  • more common
  • ground
  • 1 5V output
  • 2 4-pole SUSI connectors
  • 4 outputs for axis detectors, reed, etc.
  • speaker

3 super capacitors of 1F 2.7V on the board

Accessory supplied: 1x LOKPL950P board with solder pads, 1x Elko 4700µF/25V (Ø16x27mm)

Replaces the reference MX695P

Product Details
MS950P
9009606950109

Data sheet

Speaker
1 Watt / 8 ohm
Sound
Yes, ready
Dimensions (mm)
25 x 10,5 x 4
type of connection
34 pins
Auxiliary outputs
4 amplifiées + 2 non amplifiées + 2 LED (6 mA)
Operating electric current (A)
4
SUSI
Yes
Connection for capacitor or STACO
yes on electronic tags
Connection for servomotor
2 + 2
