Digitization board NEM 658 PluX22 for A1AA1A68000/68500 Roco

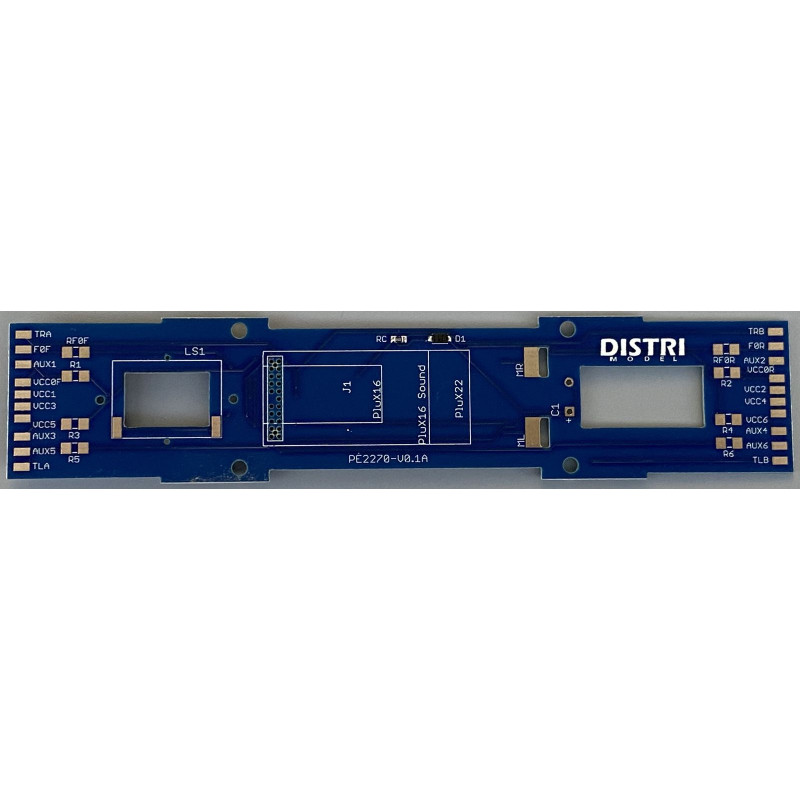

Printed circuit board with DCC socket NEM 658 PluX22, 8 independent functions to equip the A1AA1A68000/68500 Roco.

This board allows you to control the lights independently with 4 functions in digital mode.

You may use the LED lighting kit MPEL120CMS-2PU, MPEL120CMS-2TC, MPEL120CMS-3PU or MPEL120CMS-3TC (models with separate red lights) or MPEL130CMS-2TC or MPEL130CMS-3TC (models not equipped with separate red lights).

Sizes 92 x 28 mm.
This board equipped with a PluX22 decoder allows you to have 8 functions (F0F, F0R, AUX1, AUX2, AUX3, AUX4, AUX5, AUX6).
You can control the lights independently with 4 functions (F0F, F0R, AUX1, AUX2).
This board has two slots, one for a 2200uF 25V capacitor and for a 13x18mm speaker reference HPC1318.

You have 4 functions left (AUX3, AUX4, AUX5, AUX6), 2 at each end to control other lights or accessories, see the list below.

• cabin lighting
• 3rd lights
• electric uncoupler
• smoke generator
• fan
• etc...

To learn more about the NEM658 standard aka PluX, we invite you to download the PDF available opposite.

Please note that when using an MPPE board, it is essential to program the decoder to access the fire control functions independently. As this task is quite tedious with most control units, we offer decoders, sound or not, pre-programmed, ready to use.
To do this, remember to choose the "DMPE Programming" option located at the bottom of the description of the chosen item in the "Digital / Decoders" or "Digital / Pre-programmed Decoders" section or a DMPExxx reference of sound decoder in the "Digital / Sound Decoders" or "Digital / Programmed Sound Decoders" section

This product range received the 2017 New Technologies Model of the Year diploma from the FFMF

Similar to the old Miniatures Passion production under the reference MPPE470 or MPPE470-22 or MPPE2270
